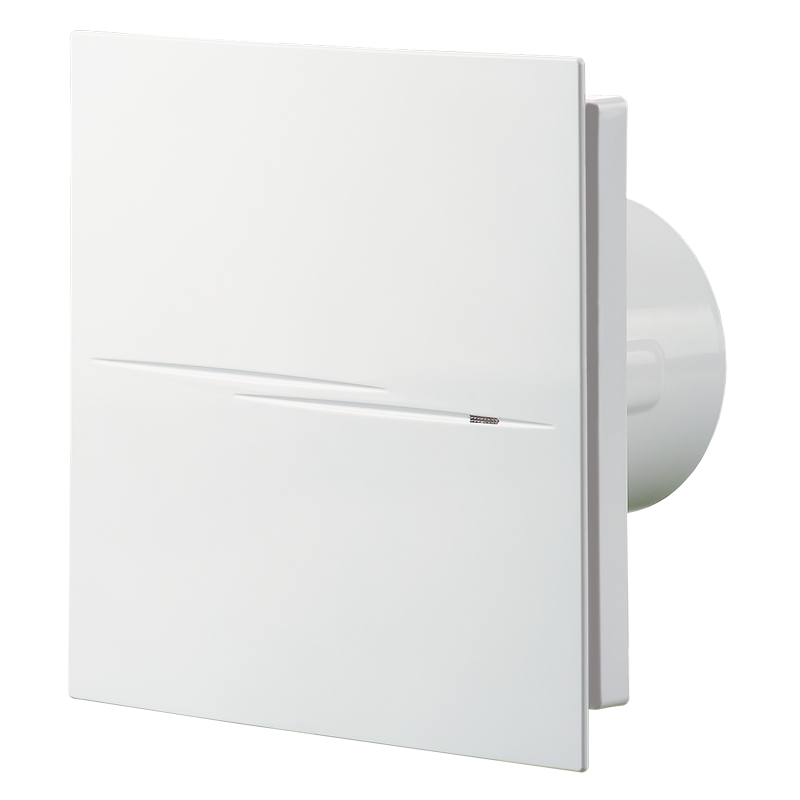

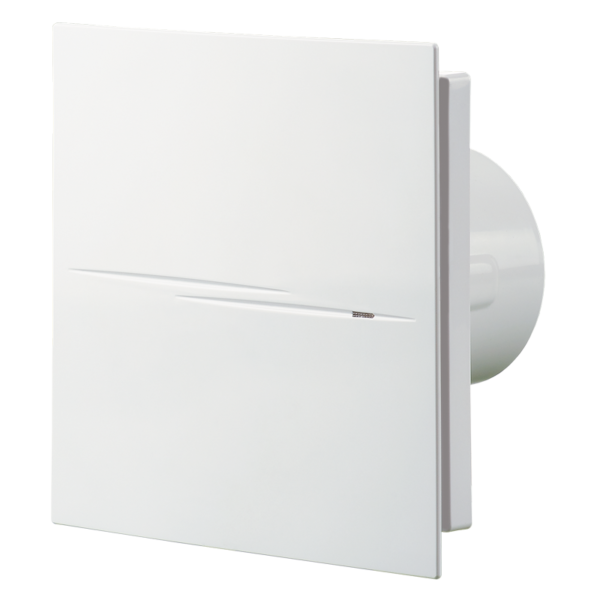

SILEO DESIGN V2

Double-speed fan with air capacity up to 90 m³/h

SERIES OF PRODUCTS

Sileo Design V2 100

FEATURES
Double-speed fan with air capacity up to 90 m³/h.Specially designed mixed-flow impeller profile ensures high air capacity and low noise level.Casing and impeller are made of quality durable UV-resistant plastic.Backdraft damper for back flow prevention.The high ingress protection rating of IP45 makes the fan the ideal solution for the ventilation of bathrooms and shower rooms.The motor is mounted on special anti-vibration dampers.The exhaust pipe incorporates a specially designed air rectifier to reduce the air turbulence, increase pressure and lower the noise level.Ideal for intermittent or continuous ventilation.
OPTIONS
Model  Sileo Design V2 100
Option S T H
 Pull-cord switch •
 Interval timer •
Turn-on delay timer • •
Turn-off delay timer • •
Humidity sensor •



 Turn-on delay timer
Fixed turn-on delay time of 60 sec.Turn-off delay timer
Turn-off delay timer adjustable from 2 to 30 min.

Interval timer

If the interval timer is enabled, the fan will turn on automatically each 6, 12 of 24 hrs, and it will operate from 2 to 30 min, depending of turn-off delay timer setting.

Humidity sensor

Humidity setpoint adjustable from 60 % up to 90 %.

Sileo Design V2 – user’s manual (pdf 2.56Mb) – SHOW – DOWNLOAD

Sileo Design V2 – data sheet (pdf 451Kb) – SHOW – DOWNLOAD
